Material Electrical Mechanical Enviromental

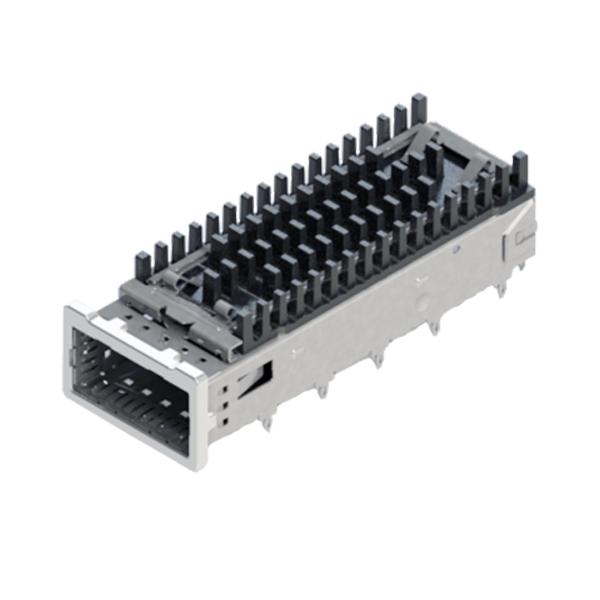

  • *Body Cage: Stainless Steel.
  • *EMI Spring: Stainless Steel.
  • *Light Pipe: Clear Polycarbonate.
  • *Housing: High Temperature Themoplastic Glass Filled,UL94 V-0, Black.
  • *Contact: Copper Alloy with Au Plated.
  • *Voltage: 30V AC(RMS)/DC Max.
  • *Current: 0.5A Max
  • *Withstanding Voltage: 300V AC.
  • *Insulation Resistance: 1000 MΩ Min.
  • *Contact Resistance: ΔR 10 Milliohms Max. for Signal Contacts.
  • *Connector Mating Forces (Module Only): 40N Max.
  • *Connector Un-mating Forces (Module Only): 30N Max.
  • *Durability: 100 Cycles Min.
  • *Operating Temperature Range: -40°C to +85°C
Thermoplastic DUST COVER Silicone DUST COVER
V V
