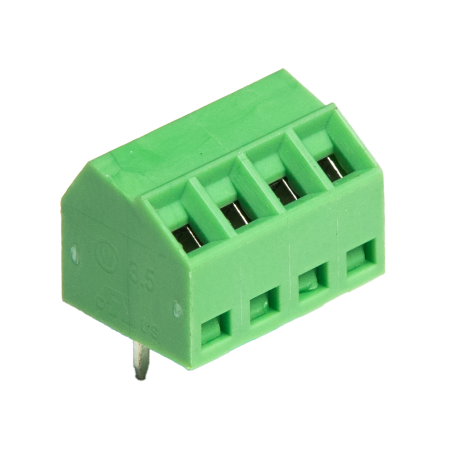

This series of termimal block has a built-in self lift wire guard clamp to protect against with pinching.
Standard sizes are 2 and 3 way-block, but every number of contact can be combined, by simply plugging them togelher and can be ordered as required.
Since the wire inlet and the screw are in a 45 position, these terminal blocks are designed specifically to solve poor accessibility problems.
- Housing: Nylon UL 94 V-0
- Contact: Brass, Tin Plated
- Withstanding Voltage: 2500VAC (1 min)
- Wire Range:16-30 AWG
- Torque: 2kgf.cm/M2
Blowers, Control panels, Electrical substations, Energy efficient lighting (LED), Refrigeration control, Variable speed/frequency drivers…
